helix-dashboard

​
Overview

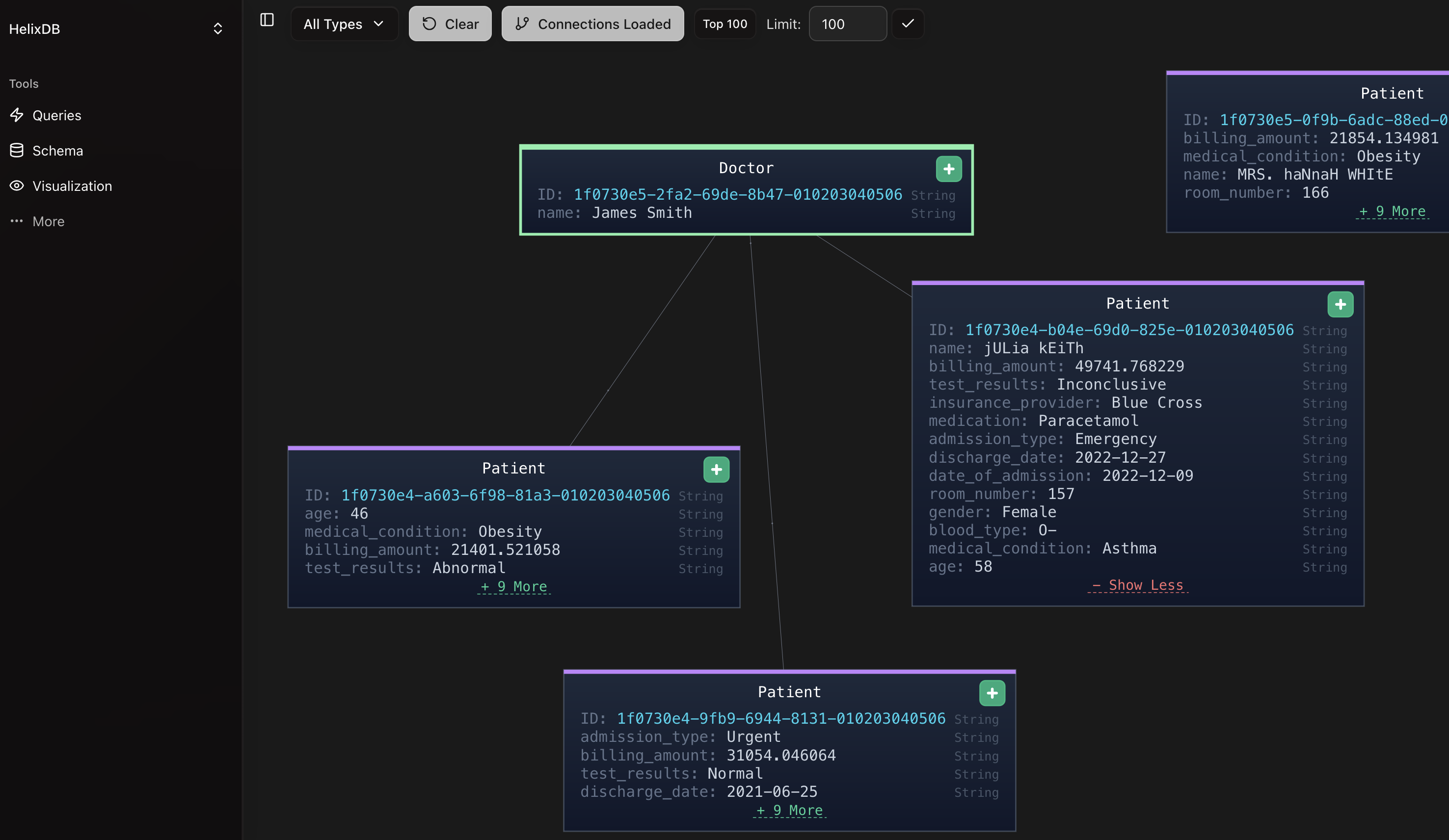

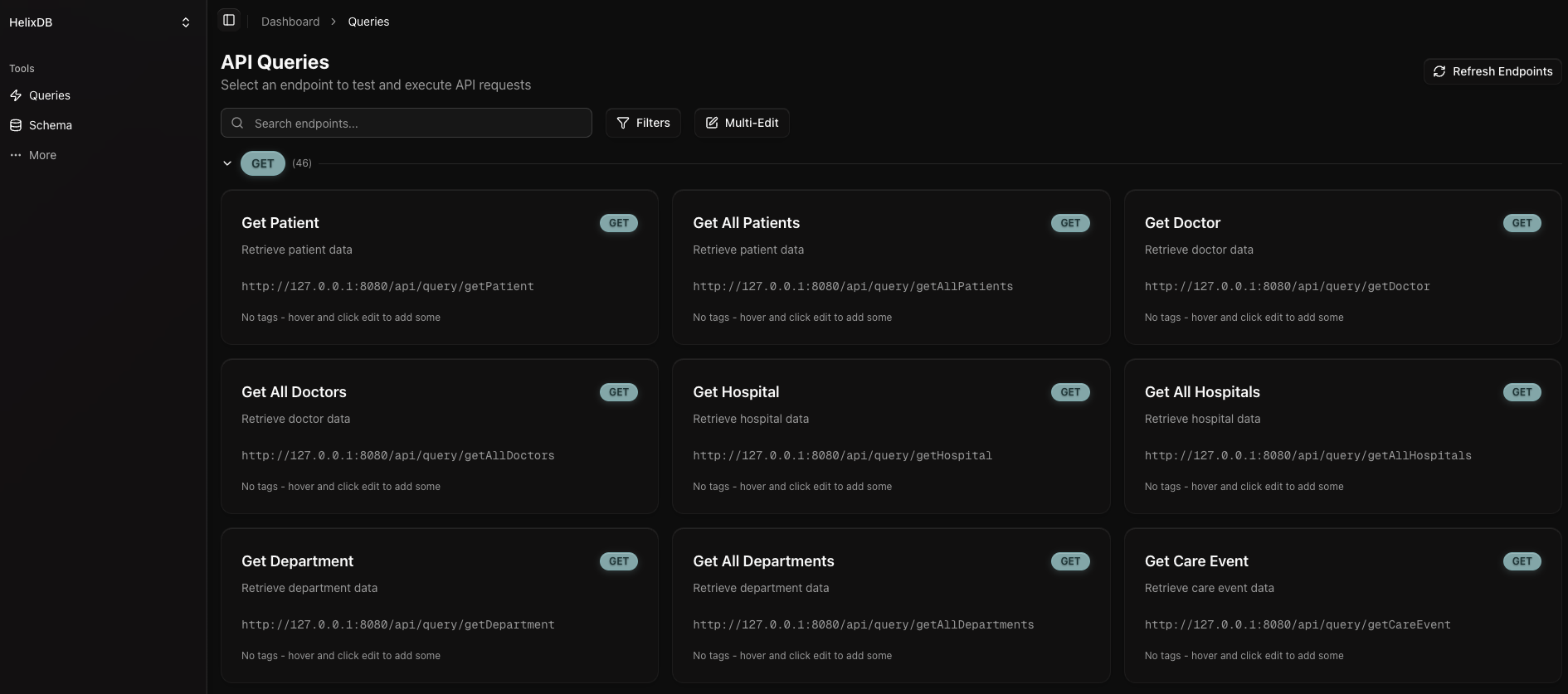

This is a dashboard for helixdb. It allows you to view and interact with your helixdb database. Dashboard Viz You can access the dashboard repository here.

​
Query Format

The dashboard works best when your queries follow this naming convention:
  • Creating or linking nodes and edges should start with “create” or “link” (e.g., “createPatient” or “linkPatientToDoctor”)
  • Searching or getting nodes and edges should start with “get” (e.g., “getPatient” or “getDoctor”)
  • Updating nodes and edges should start with “update” (e.g., “updatePatient” or “updateDoctor”)
  • Deleting nodes and edges should start with “delete” (e.g., “deletePatient” or “deleteDoctor”)

​
Setup

​
Local Development

  1. Ensure your HelixDB instance is running (default port: 6969)
  2. Navigate to the frontend directory and run npm install to install dependencies
  3. Run npm run dev to start the development server
  4. The application will be available at http://localhost:3000

​
Docker (Production)

For production deployment using Docker:
# Build and start the container
docker-compose up --build -d

# Access the application at http://localhost:3000
See DOCKER_README.md for detailed Docker setup instructions.

​
Environment Variables

Create a .env file in the frontend directory to configure your HelixDB connection:
# Local instance
HELIX_HOST=localhost
HELIX_PORT=6969
HELIX_CLOUD_URL=
HELIX_API_KEY=

# Cloud instance
HELIX_HOST=
HELIX_PORT=
HELIX_CLOUD_URL=https://xxxxxxxxxx.execute-api.us-west-1.amazonaws.com/v1
HELIX_API_KEY=your-api-key
Available variables:
  • HELIX_HOST - HelixDB host (default: localhost)
  • HELIX_PORT - HelixDB port (default: 6969)
  • HELIX_CLOUD_URL - HelixDB cloud URL (for cloud deployments)
  • HELIX_API_KEY - HelixDB API key (for cloud deployments)

​
Visualizer Setup

NOTE:
  • You may need to stop your current HelixDB instance and deploy again using helix push <instance_name> to use the visualizer.
  • In some browsers like Brave, you may not be able to click on all nodes properly. We recommend using Chrome, Firefox, or Safari for the best experience.
  • For performance reasons, we recommend not visualizing more than 3000 nodes as it may cause browser performance issues.
  1. Ensure your HelixDB instance is deployed using helix push <instance_name> to use the visualizer
  2. Start the dashboard application (locally or via Docker)
